4G Modbus Gateway

Model: TSRTU6660
Name: 4G MODBUS IO RTU

Model: TSGTW1003

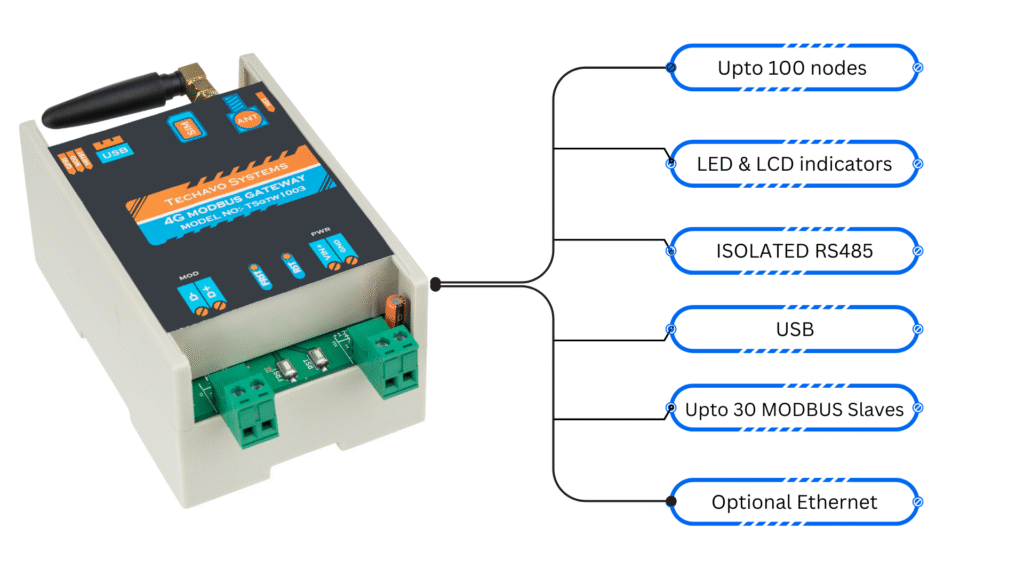

Name: 4G Modbus Gateway

This 4G Modbus Gateway is the latest LoRa technology for industrial Internet of Things solutions. It can support up to 100 nodes of data transmission and reception and easily upload data to the cloud. The 4G Modbus Gateway helps you connect the wireless network to an IP network via Ethernet, 3G, or 4G.

Features

Intelligent Modbus, IO, Data Logger, 2G,4G GPRS/WiFi Connectivity
1 x RS-485 port for RTU Modbus, 1x RS232 port for HMI, TTL for Configuration
Embedded ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with in-built watchdog
Wide range power supply 9~36VDC with over voltage and phase-reversal protection
Upto 100 nodes can be monitored and controlled
Configure and Read Multiple Slave IDs Upto 30, Selectable Register Address data upto 30
Parameter Data type, Byte Swapping Conversion and Scaling factor enabled
Transparent Modbus or Device Inbuilt Polling – Formatted to (ASCII/HEX/RawHEX)
Smart Inbuilt Data Logger works during Network and Server Disconnection
Logger Sends offline data once Network and Server Connected
Upto 6 Authorized numbers list for command and Configuring
Configurable TCP/Http/MQTT/Https Mode, GET/POST Methods
Configurable CSV/JSON Format for Parameter Packetization
Remote Configuration through SMS/GPRS/Server IP Commands
Alerts: Power Failure Restore, Low battery Shutdown, Digital IN Changes, Device Reset
OTA (Over The Air) Firmware upgrade, Device Configuration update
LED & LCD indicators to provide GSM, GPRS, Signal, Modbus Tx/Rx COM Status
Configurable Server Connection: Connects on Demand or Always Connected
Keep Alive command to maintain socket connection
