Model: TSRTU6660
Name: 4G MODBUS IO RTU
The IIoT IO RTU from Techavo Systems are some of the best available. These are the most intelligent gateways that are produced in-house in India. This make-in-India product can collect data from any MODBUS-enabled energy meter, weather monitoring system, variable frequency drive, string monitoring system, and analog and digital sensors. This IO RTU can provide call and SMS notifications and data in JSON and CSV format over several protocols, including FTP, HTTP(S), MQTT(S), and TCP, to cloud servers. It is possible to remotely configure this device via FTP, TCP, MQTT, SMS, and desktop applications. Its EDGE storing feature guarantees zero data packet loss during a network outage.
Features
- Comes with 4G/LoRa/LoRaWAN/WiFi/BLE/Zigbee.
- Configurable upto 30 MODBUS Slaves with all possible data formats, byte order, scale factor, baud rate, data bit, parity.
- Multi Communication Protocol support (MODBUS RTU Master, MODBUS RTU Transparent, MODBUS RTU Salve, MODBUS RTU over TCP).
- The Data Packet is in configurable JSON/CSV format.
- Several interlocking logics based on AI, DI, DO are available that can replace PLC.
- SMS/Call options to send/receive configuration, alerts, status, and control.
- Offline data storage up to 64MB.
- OTA device configuration.
- It integrates with all analog (0-10V, 4-20MA) and Digital (dry, wet, pulse) Input Sensors.
- Pendrive/SD Card additional storage (optional).
Application Area
- DG Set Monitoring
- CCMS
- Cold Storage
- Smart City
- Energy Management
- Pump Management
- Weather Station

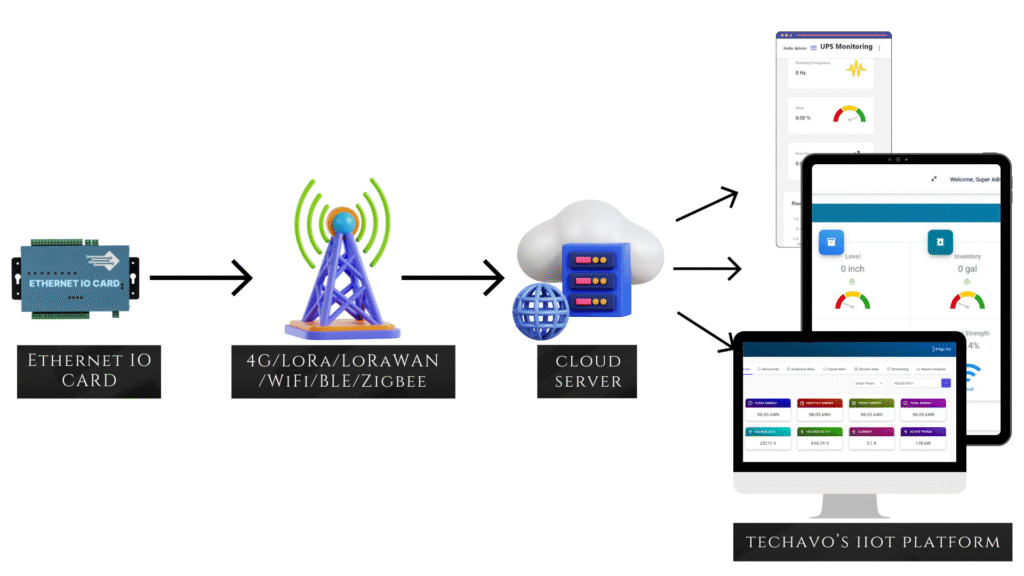

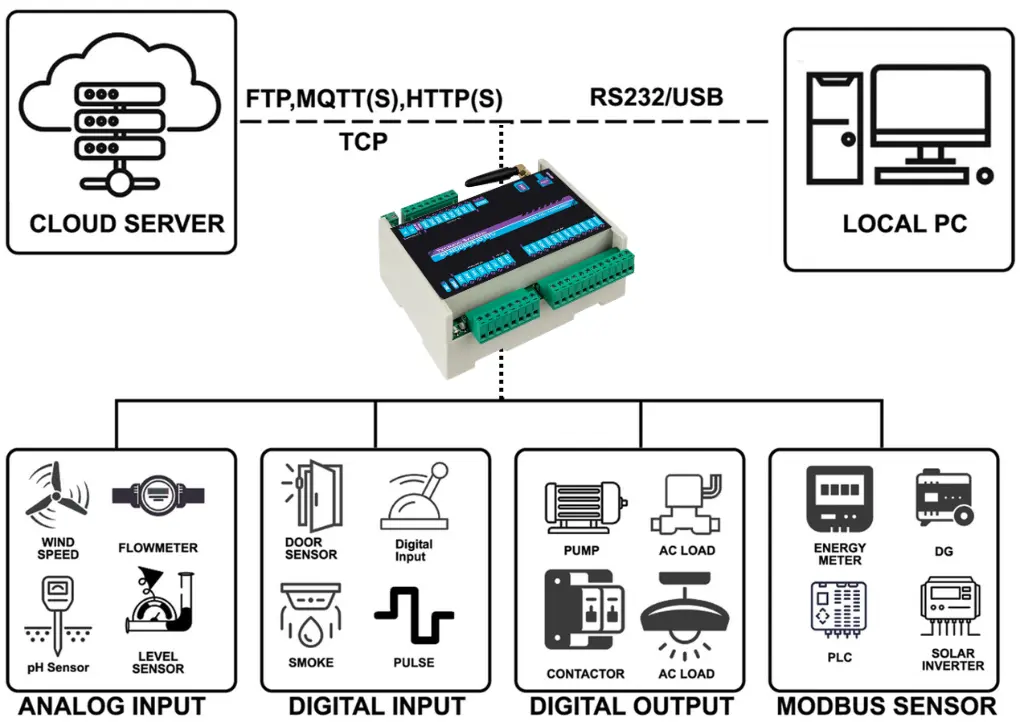

How It Works
